Pneumatic Actuated Ductile Iron Body Resilient Seat API609 Butterfly Valve
Pneumatic Actuated Ductile Iron Body Resilient Seat API609 Butterfly Valve
Product Detail
|
Valve type |
Centric Disc Butterfly valve with a
single piece rubber lined body |
|
Body type |
Short wafer (sandwiched between flanges) |
|
Seat type |
Integrally moulded with the body |
|
End Connection |
Wafer Sandwiched(Lug type on request) |
|
Pressure rating |
PN 10 / PN 16 (On Request) |
|
Oper. Temp. range |
-25 deg C to 130 deg C (depending on MOC) |
|
Seat Leakage |
Tight shut off |
|
Operation |
Hand lever for sizes from 40mm to 350 mm
Worm gear boxes for 40 mm to 1000 mm |
Material:
·
Body: I.C /CI(IS 210Gr.FG 200) WCD
/S.S.304 / S.S.316
·
Disc: CF8/CF8M/CF3M / S.G. Iron/Teflon
Coated/Powder coated/Nylon coated /Rubber Line
·
Seat: EPDM /Nitrile /Hayplon/Viton/
Moulded or Replaceable muffler type
·
Shaft: AISI 410 / CF8 /CF8M/CF3M

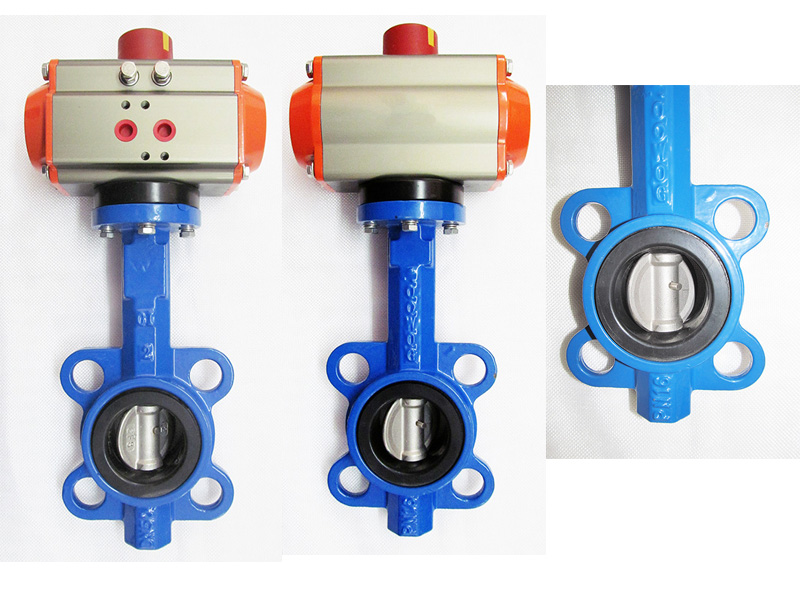

Double Acting Pneumatic Actuated Butterfly
Valve
WHY US?
Advantages:
Professional: More than 10 years of exporting expericens in valve industry ensure that we always offering the most effective solutions to meet your requirement.
Quality Control: Strictly operates under the ISO9001
certificate, each valve will be tested for three times before shipping out.
Experienced Sales Team: Our sales team is experienced, and they are
familiar with our products and the working condition and the on-site conditions.
About Price: we provide very reasonable and competitive price for you
