API609 Butterfly Valve

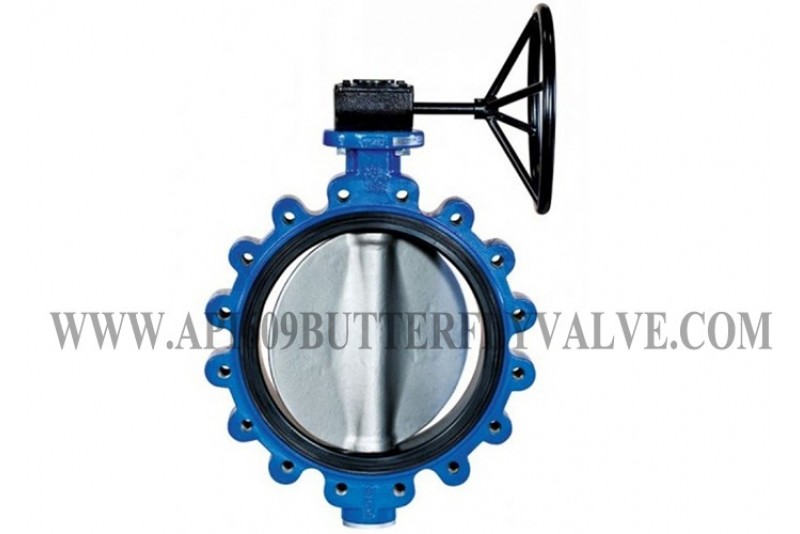

Gear Operatin Cast Iron JIS 10K Drilled API609 Butterfly Valve

Gear Operatin Cast Iron JIS 10K Drilled API609 Butterfly Valve
Gear Operatin Cast Iron JIS 10K Drilled API609 Butterfly Valve
Based on 0 reviews. - Write a review
$0.00
Ex Tax: $0.00
Add to Cart
Question
Add to Wish List Compare this Product

Write a review

Note: HTML is not translated!
Bad Good

Gear Operatin Cast Iron JIS 10K Drilled API609 Butterfly Valve


Introduction



DN100 to DN 1200, Face to face after EN558-1/13, compatible with flange PN10 or PN16, top flange after ISO 5211, with hand lever from DN200 with Worm Gear. Our resilient butterfly valve are reliable, maintenance-free shutoff and control valve s with gas tight seal. It can be used as a leak-free and corrosion resistant in various applications under demanding operating conditions.



For a butterfly valve, only the seat and disc will come into contact with the medium. We pay more attention to the material selection for the disc and seat lining to ensure that a suitable corrosive resistant combination can be chosen for almost any application.



Typical Applications

Chemicals, Oil and Gas, Power, Water and Waste Water, Paints and Colors, Pulp and Paper, Food and Beverage

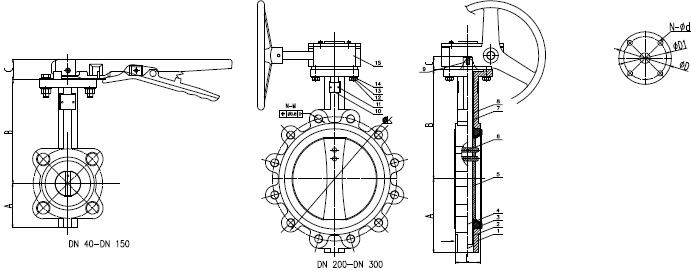

SIZE

A

B

C

L

ANSI 150LB

JIS 10K

ISO 5211

Top Flange

mm

in

øK

N-M

øK

N-M

øD

øD1

N-ød

40

1.5"

70

164

32

33

98.5

4-1/2"-13UNC-2B

105

4-M16

65

50

4-ø8

F05

50

2"

80

169

32

43

120.6

4-5/8"-11UNC-2B

120

4-M16

65

50

4-ø8

F05

65

2 1/2"

89

176

32

46

139.7

4-5/8"-11UNC-2B

140

4-M16

65

50

4-ø8

F05

80

3"

95

183

32

46

152.4

4-5/8"-11UNC-2B

150

8-M16

65

50

4-ø8

F05

100

4"

114

201

32

52

190.5

8-5/8"-11UNC-2B

175

8-M16

90

70

4-ø10

F07
