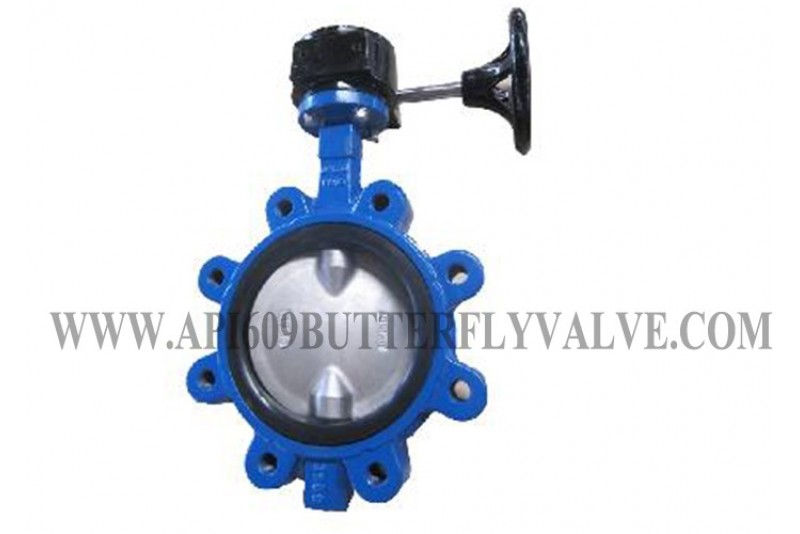

Full Lug Type 2 Pieces Stem SS Disc API609 Butterfly Valve
Full Lug Type 2 Pieces Stem SS Disc API609 Butterfly Valve
Full lug body cast iron butterfly valve, in
stainless steel disc, with two piece stem design, for wide applications such as
water, wastewater, gas air, Bi-directional seal bubble tight shutoff, with 10
position lock handle for throttling.
Design Benefits
Wafer /lug body available.
Rated pressure 200 psi for size 2”-12”; 150
psi for 14”-16”
Buna Seat up to 80 ℃; EPDM up to
100℃.
Stainless steel stem
Disc: ductile iron-nickel plated; aluminum
bronze or stainless steel
Phenolic backed cartridge seat
24”, 36”, 48”, 60” & 72” extension
Fusion bonded epoxy coating
MSS SP-67/ API609
Installs between ANSI class125 /150 flanged
Top flange: ISO5211

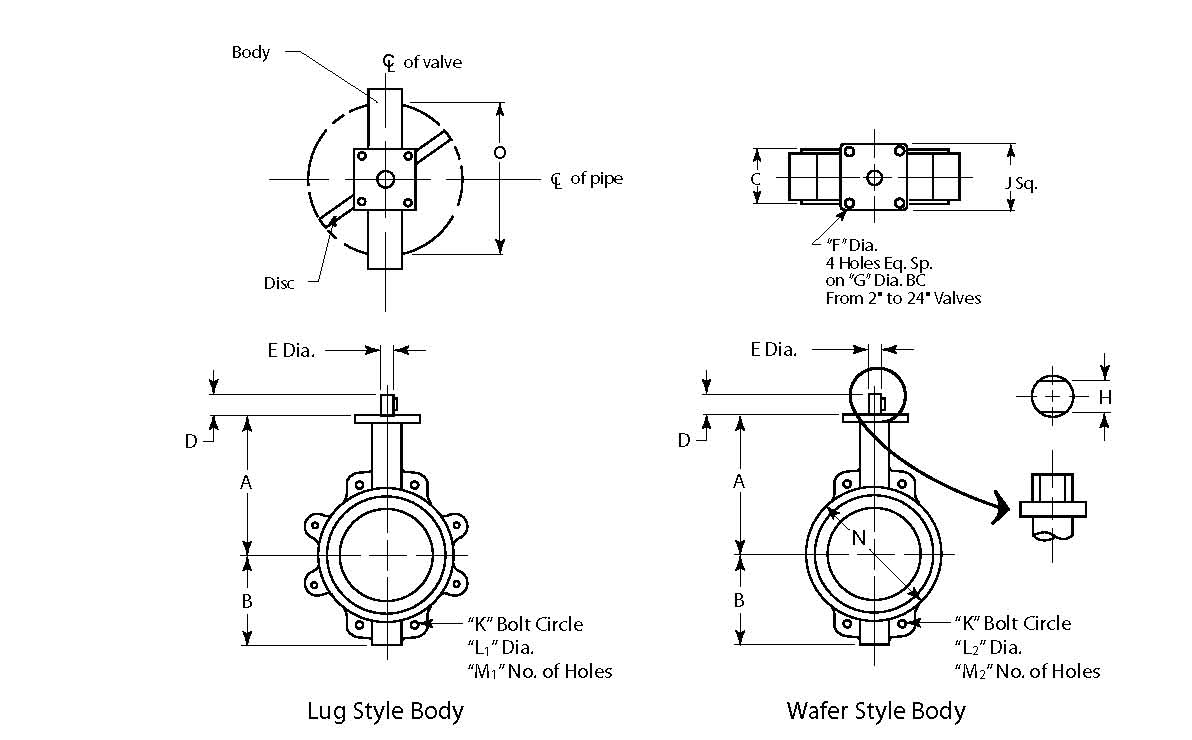

Dimensions
|
Size |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L1 |
L2 |
M1 |
N |
Weight |
|
50 |
161.9 |
81 |
47.7 |
31.8 |
12.7 |
9.53 |
70 |
10 |
69.85 |
120.65 |
5/8-11 |
17.46 |
4 |
101.6 |
4.08 |
|
65 |
174.6 |
88.9 |
50.8 |
31.8 |
12.7 |
9.53 |
70 |
10 |
69.85 |
139.7 |
5/8-11 |
17.46 |
4 |
120.65 |
5.9 |
|
80 |
181 |
95.3 |
50.8 |
31.8 |
12.7 |
9.53 |
70 |
10 |
69.85 |
152.4 |
5/8-11 |
17.46 |
4 |
127 |
6.35 |
|
100 |
200 |
114.3 |
54 |
31.8 |
15.9&l
|
